| Model (ME-OF-HP-CYL-TANK) | Motor | No of Cylinders | Compressor RPM | Tank Cap. in LTRS | Max Pressure | Piston Displacement | |||
|---|---|---|---|---|---|---|---|---|---|
| HP | KW | PSI | Kg/cm2 | LPM | CFM | ||||
| ME-OF-0.5-1-35 | 0.5 | 0.38 | 1 | 400 | 35 | 107.92 | 7.6 | 95 | 3.35 |
| ME-OF-01-1-70 | 1 | 0.75 | 1 | 1120 | 70 | 124.676 | 8.78 | 118.29 | 4.18 |
| ME-OF-01-1-110 | 1.5 | 1.1 | 1 | 810 | 110 | 124.676 | 8.78 | 146.65 | 5.18 |
| ME-OF-02-1-110 | 2 | 1.5 | 1 | 900 | 110 | 124.676 | 8.78 | 219.75 | 7.76 |
| ME-OF-02-1-160 | 2 | 1.5 | 1 | 900 | 160 | 124.676 | 8.78 | 219.75 | 7.76 |
| ME-OF-03-2-160 | 3 | 2.2 | 2 | 540 | 160 | 124.676 | 8.78 | 374 | 13.2 |
| ME-OF-03-2-220 | 3 | 2.2 | 2 | 540 | 220 | 124.676 | 8.78 | 374 | 13.2 |
| ME-OF-05-2-220 | 5 | 3.7 | 2 | 840 | 220 | 124.676 | 8.78 | 581.12 | 20.52 |
| ME-OF-05-2-250 | 5 | 3.7 | 2 | 840 | 250 | 124.676 | 8.78 | 581.12 | 20.52 |
| ME-OF-7.5-2-420 | 7.5 | 5.5 | 2 | 600 | 420 | 124.676 | 8.78 | 833 | 29.42 |
| ME-OF-10-2-420 | 10 | 7.5 | 2 | 840 | 420 | 124.676 | 8.78 | 1166.3 | 41.19 |
| ME-OF-10-2-500 | 10 | 7.5 | 2 | 840 | 500 | 124.676 | 8.78 | 1166.3 | 41.19 |
| Model (ME-OF-HP-CYL-TANK) | Motor | No of cylinders | comp RPM | Tank Cap. in LTRS | Max Pressure | Piston Displacement | |||
|---|---|---|---|---|---|---|---|---|---|
| HP | KW | PSI | Kg/cm2 | LPM | CFM | ||||
| ME-MO-01-1-45 | 1 | 0.75 | 1 | 1440 | 45 | 99.4 | 7 | 128.54 | 4.54 |
| ME-MO-01-1-46 | 1 | 0.75 | 1 | 1440 | 70 | 99.4 | 7 | 128.54 | 4.54 |
| ME-MO-1.5-1-47 | 1.5 | 1.1 | 1 | 1440 | 110 | 99.4 | 7 | 142.43 | 5.03 |
| ME-MO-02-1-48 | 2 | 1.5 | 1 | 1440 | 110 | 99.4 | 7 | 193.86 | 6.85 |

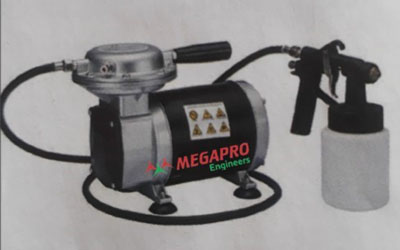

| MODEL | POWER | VOLUME | PRESSURE | NOISE | VOLTAGE | TANK CAPACITY | NET WEIGHT |
|---|---|---|---|---|---|---|---|
| H-OF-0.33-000L | 0.25KW,0.33 HP | LPM = 30,CFM = 1.06 | BAR = 4,PSI = 58 | 47 DB | 240V | 0 L | 9 KG |
| MODEL | POWER | VOLUME | PRESSURE | NOISE | VOLTAGE | TANK CAPACITY | NET WEIGHT |
|---|---|---|---|---|---|---|---|
| H-OF-0.75-025L | 0.55 KW,0.75 HP | LPM = 110,CFM = 3.88 | BAR = 8,PSI = 116 | 60 DB | 240V | 25 L | 20 KG |
| MODEL | POWER | VOLUME | PRESSURE | NOISE | VOLTAGE | TANK CAPACITY | NET WEIGHT |
|---|---|---|---|---|---|---|---|
| H-OF-02-050L | 1.1 KW,1.5 HP | LPM = 220,CFM = 7.75 | BAR = 8,PSI = 116 | 60 DB | 240V | 50 L | 45 KG |
| MODEL | POWER | VOLUME | PRESSURE | NOISE | VOLTAGE | TANK CAPACITY | NET WEIGHT |
|---|---|---|---|---|---|---|---|
| V-OF-01-040L | 0.75 KW , 1 HP | LPM = 135,CFM = 4.76 | BAR = 8,PSI = 116 | 60 DB | 240V | 40 L | 27 KG |
| Model (ME-VAC-HP-CYL-TANK) | Motor | No of cylinders | comp RPM | Tank Cap. in LTRS | Vacuum In Hg | Piston Displacement | ||
|---|---|---|---|---|---|---|---|---|
| HP | KW | LPM | CFM | |||||
| ME-VAC-03-2-220 | 3 | 2.2 | 2 | 540 | 220 | 29 | 353.11 | 12.47 |
| ME-VAC-05-2-250 | 5 | 3.7 | 2 | 840 | 250 | 29 | 549.28 | 19.4 |
| ME-VAC-7.5-2-420 | 7.5 | 5.5 | 2 | 600 | 420 | 29 | 800.7 | 28.28 |
| ME-VAC-10-2-500 | 10 | 7.5 | 2 | 840 | 500 | 29 | 1121 | 39.59 |

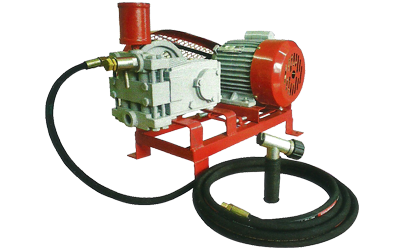

| Model ( ME-CWP-HP-LPM) | Motor | FLOW LPM | Max Press Bar | Operating Temp - Deg C | |
|---|---|---|---|---|---|
| HP | KW | ||||
| ME-CWP-1.5-12 | 1.5 | 1.1 | 12 | 30 | 60 |
| ME-CWP-02-15 | 2 | 1.5 | 15.5 | 50 | 60 |
| ME-CWP-03-18 | 3 | 2.2 | 18 | 60 | 60 |
| ME-CWP-05-20 | 5 | 3.7 | 20 | 80 | 60 |

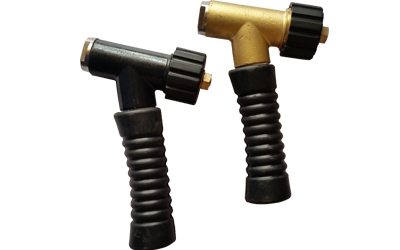

| Accessories with products : Hose & Gun | |||||
| Model ( ME-CWPA-HP-LPM) | Motor | FLOW LPM | Max Press Bar | Operating Temp - Deg C | |
|---|---|---|---|---|---|
| HP | KW | ||||
| ME-CWPA-03-15 | 3 | 2.2 | 15 | 75-100 | 60 |
| ME-CWPA-05-20 | 5 | 3.7 | 20 | 80-100 | 60 |
| Accessories with products : Unloader Valve / Trigger Gun / Foam Gun & Hose | |||||
